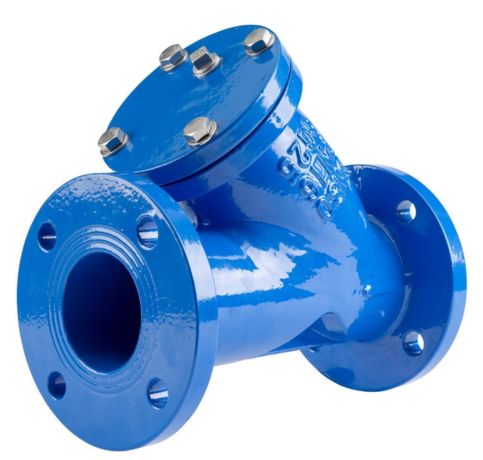

Anup PTFE lining, a prominent Houston , USA-based manufacturer of PTFE, FEP, and PFA Lined Valves, offers superior quality FEP/PFA Lined “Y” Type Strainers that meet national as well as international standards. The FEP/PFA Lined “Y” Type Strainer is so called due to its Y-shaped structure, which is used to filter out large particles at the initial stage of flow. Such strainers are especially helpful in preventing solid contaminants from entering pipelines.

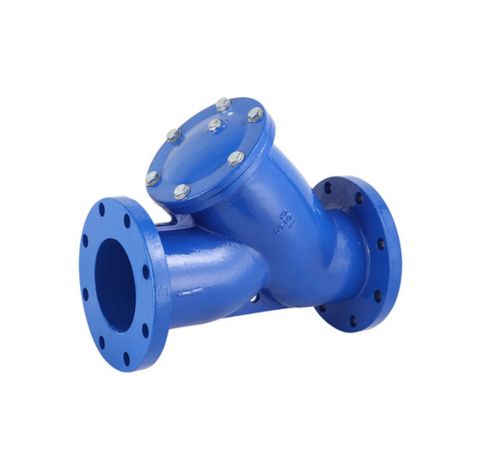

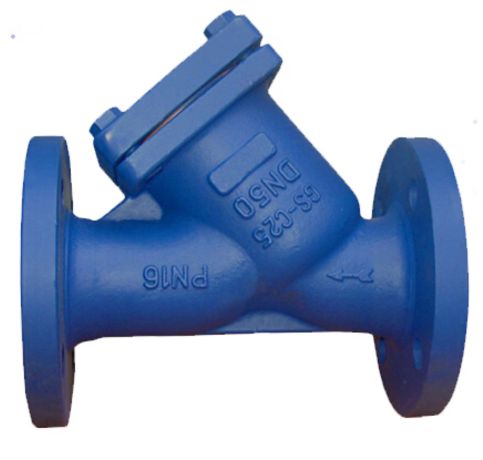

A PTFE Lined Y Type Strainer is a corrosion-resistant filter device used in pipes to strain out solid impurities from fluids or gases. The Y-shaped component has an internal lining of PTFE (Polytetrafluoroethylene) that is chemically and heat resistant and a mesh filter. The strainer protects delicate devices like valves and pumps from damage by debris. Used extensively in petrochemical, pharmaceutical and chemical sectors, it inhibits the wasteful flow and extends the life of equipment downstream.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Anup PTFE lining is a leading supplier of PTFE Lined Y Type Strainer in Houston , USA, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Size(inch) | 1″ | 1½” | 2″ | 2½” | 3″ | 4″ | 6″ | 8″ |
| L | 190 | 260 | 284 | 305 | 348 | 415 | 508 | 650 |
| Ød | 25 | 38 | 50 | 65 | 75 | 100 | 150 | 200 |
| O.D. ØD | 110 | 125 | 150 | 180 | 190 | 230 | 280 | 345 |
| P.C.D. ØK | 79.2 | 98.5 | 120.6 | 139.7 | 152.4 | 190.5 | 241.3 | 298.4 |
| R.F.DIA. ØRF | 50.8 | 73.0 | 92.1 | 104.7 | 127.0 | 157.2 | 215.9 | 269.9 |
| No. OF HOLE N | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 |
| HOLE DIA. ØH | 15.8 | 15.8 | 19 | 19 | 19 | 19 | 22.2 | 22.2 |
Effectively removes debris and particulates, protecting downstream equipment and improving system longevity.
Operates efficiently under high-temperature conditions without compromising material integrity or filtration performance.
PTFE lining adds durability, ensuring the strainer withstands harsh operational conditions for extended periods.
Requires less upkeep due to durable PTFE lining.
It’s a filtration device with a PTFE lining designed to remove solid particles from corrosive or reactive fluid systems.
PTFE provides excellent chemical resistance, preventing corrosion and contamination in aggressive fluid applications.
In industries like chemical processing, pharmaceuticals, food and beverage, and water treatment where fluid purity is critical.
Yes, the mesh or screen inside is removable for easy cleaning and maintenance.
The body is usually made from carbon steel or stainless steel, lined internally with PTFE for chemical protection.
