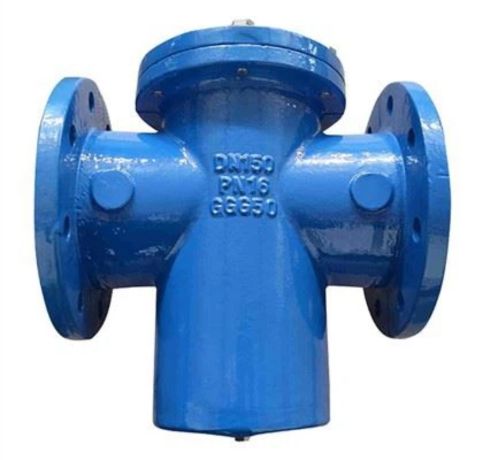

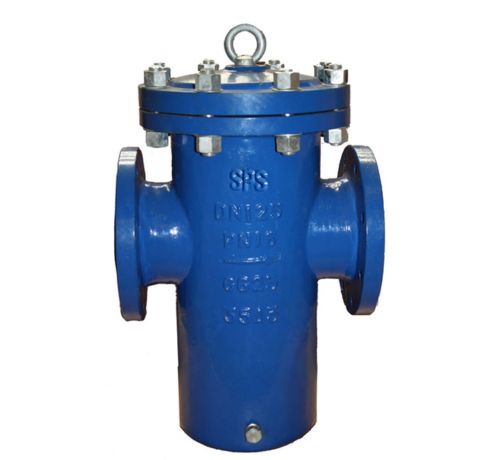

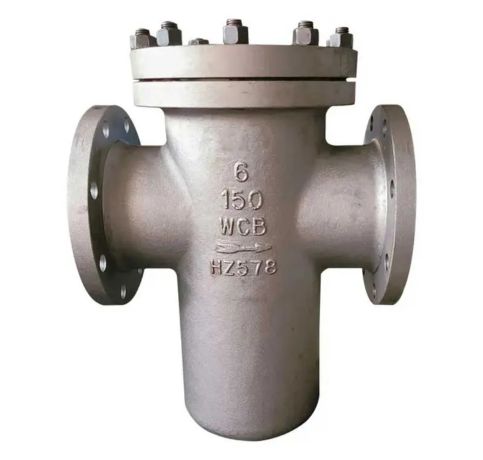

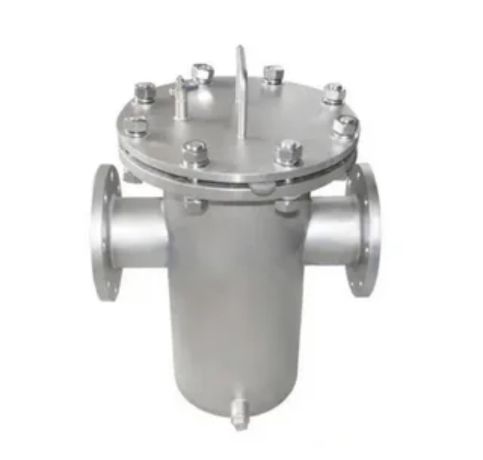

Anup PTFE lining, one of the PTFE, FEP, and PFA Lined Bucket Type Strainer leading manufacturers from Houston , USA, The organization offers effective and efficient filtration solutions. Bucket Type Strainer is so called because of its bucket-like design and is used for coarse filtration. MS FEP Lined types have longer lifespan, whereas SS 304 PFA Lined types are compact in assembly, are high on performance, and low on pressure drop.

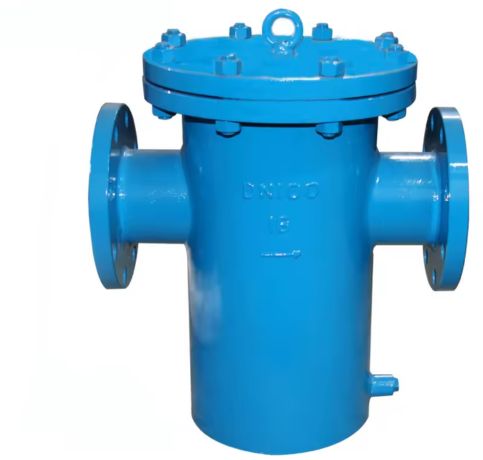

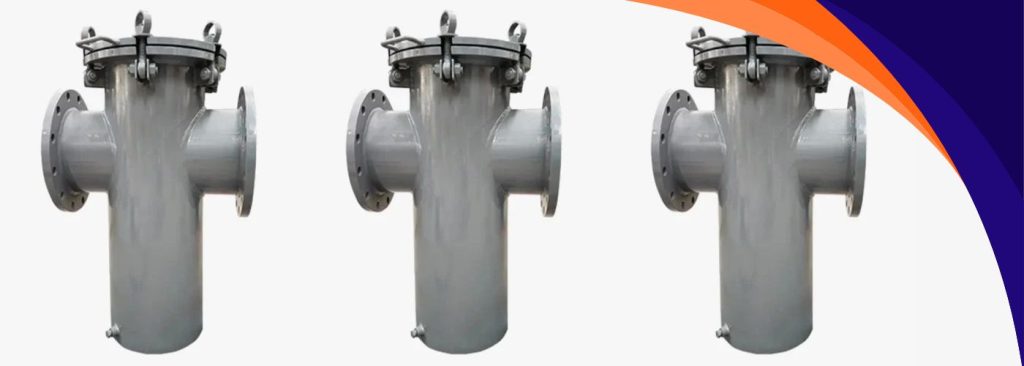

PTFE Lined Bucket Type Strainer is an industrial strainer employed to remove solid particles from fluid within a pipe. It is provided with a bucket-type strainer basket and internally lined with PTFE (Polytetrafluoroethylene) for enhanced chemical and corrosion resistance. Most suitable for coarse filtration, it protects downstream equipment like pumps and valves from damage caused by debris. It is used mostly in the chemical, pharmaceutical, and petrochemical sectors, where it has low pressure drop, long life, and good performance under highly corrosive operating environments.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Anup PTFE lining is a leading supplier of PTFE Lined Bucket Type Strainer in Houston , USA, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB |
ID1 |
ID2 |
H1 |
H2 |
L |
|
50 |
42 |
92 |
150 |
250 |
225 |
|
80 |
72 |
148 |
171 |
291 |
350 |
|
100 |
92 |
189 |
216 |
330 |
400 |
Ensures long-term performance with minimal maintenance requirements.
Suitable for a wide range of industries, including chemical, pharmaceutical, and food processing.
PTFE lining adds durability, ensuring the strainer withstands harsh operational conditions for extended periods.
Ensures effortless flow control and precise regulation.
It’s a strainer with a bucket-style filter and a PTFE lining to trap debris while resisting corrosive chemicals.
The PTFE lining offers excellent chemical resistance, prevents corrosion, and ensures process fluid purity.
In chemical plants, pharmaceutical units, and other industries handling aggressive or high-purity fluids.
Yes, the strainer basket can be removed, cleaned, or replaced easily during maintenance.
PTFE lined bucket type strainers are available in a wide range of sizes, typically from 15mm to 300mm, customizable to fit various pipeline requirements.
